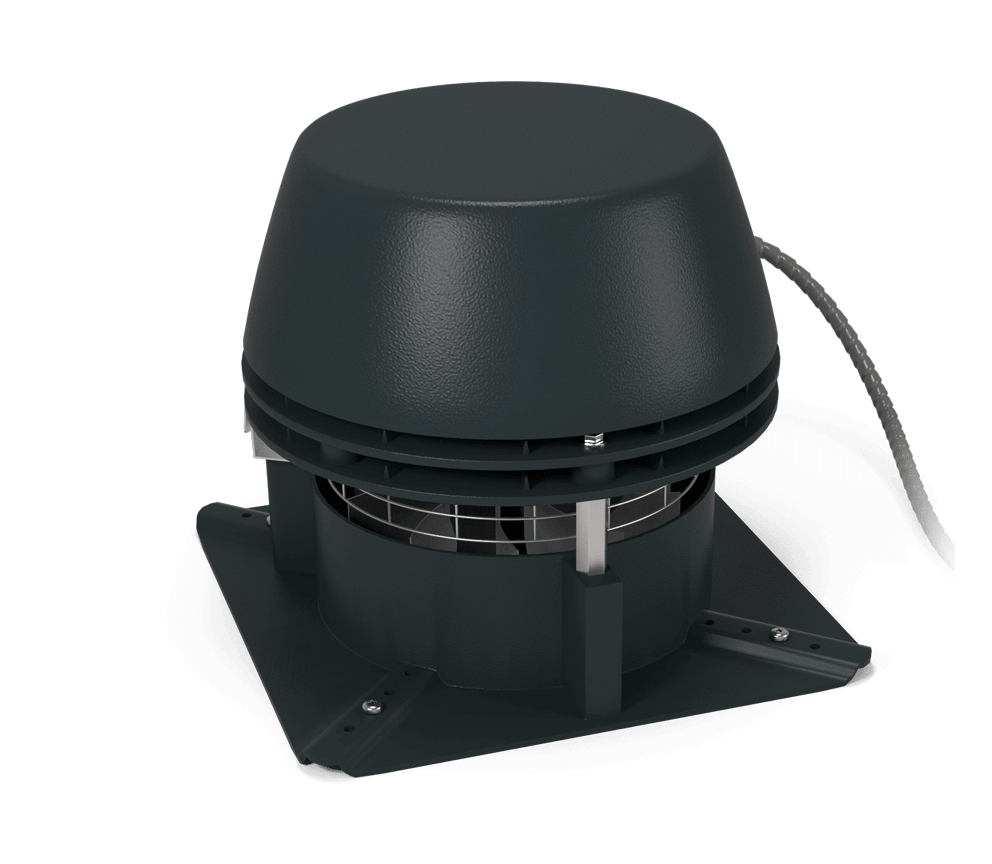

The CFE RS Chimney Fans are meticulously engineered to ensure horizontal smoke discharge, enhancing the efficiency and safety of your chimney system.
Key Features
Versatile Fuel Compatibility
- Ideal for solid fuels: The CFE RS Chimney Fan excels with solid fuel boilers, fireplaces, and stoves.
- Compatible with all fuel types: Although best suited for solid fuels, this chimney fan can handle various fuels seamlessly.
Stainless Steel Axial Impeller
- Easy maintenance: The stainless steel construction of the axial impeller simplifies the removal of soot and deposits, making chimney sweeping a breeze.
Optimised for Performance
- Vacuum creation: Mounted on top of the chimney, the fan creates a vacuum in the flue pipe and chimney, ensuring optimal smoke extraction.
- Integrated system: The RS Chimney Fan is a vital component of the CFE system and requires connection to an CFE control. See below for compatible accessories.
Robust and Reliable Design
Durability and High-Temperature Resistance
- Continuous use: Built to withstand temperatures up to 250°C, the CFE RS Chimney Fan is perfect for prolonged use.
- Premium materials: Constructed from cast aluminium with stainless steel screws and bolts, ensuring longevity and resilience.
Advanced Motor Protection
- Heat-resistant motor: The enclosed asynchronous motor is designed with permanently lubricated ball bearings, safeguarding it from flue gas exposure.

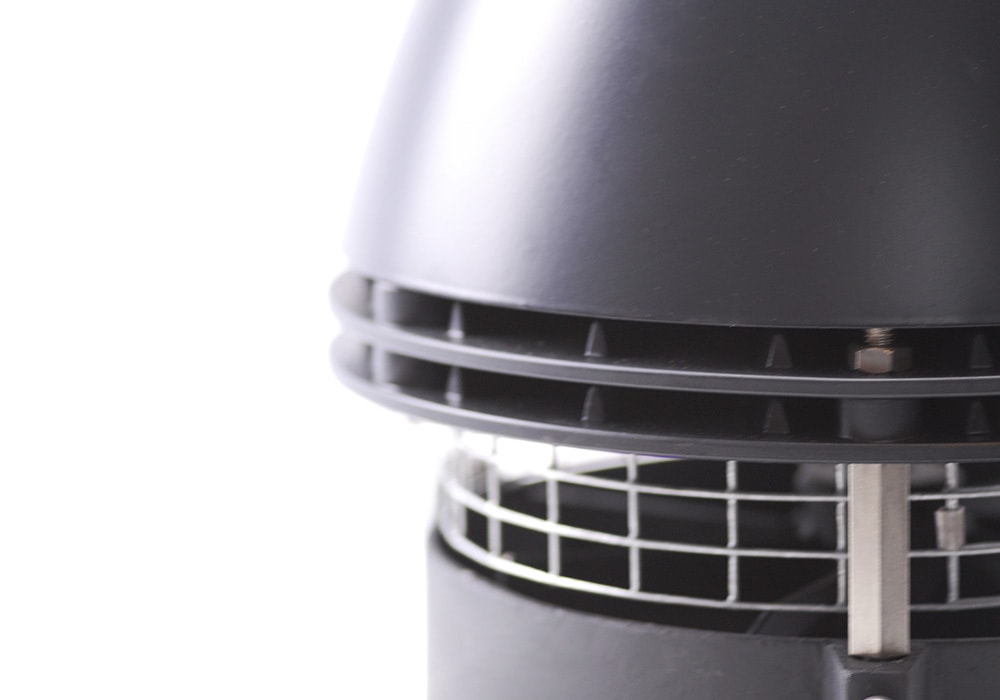

- Efficient cooling: Equipped with a special cooling vane wheel and cooling air slots, the motor remains cool during operation. The heat-resistant, strain-relieved cable is protected by a reinforced hose casing, enhancing durability.
Safety and Ease of Maintenance
- Convenient access: The chimney fan can be easily opened, facilitating straightforward chimney cleaning.
- Safety mesh: A stainless steel safety mesh at the discharge opening protects fingers and birds from harm.
Product Range
Video
Downloads
Manual: DS_RS_UK
Manual: 3112000_RS_UK
Different Versions
| Rotations/min. | Voltage | Ampere | kW | Weight | |
|---|---|---|---|---|---|
| RS009 | 1400 | 1 x 230 V | 0,3 A | 0,05 | 9 kg |
| RS012 | 1400 | 1 x 230 V | 0,3 A | 0,09 | 14 kg |
| RS014 | 1400 | 1 x 230 V | 0,6 A | 0,13 | 18 kg |
| RS016 | 1400 | 1 x 230 V | 1,2 A | 0,29 | 25 kg |
